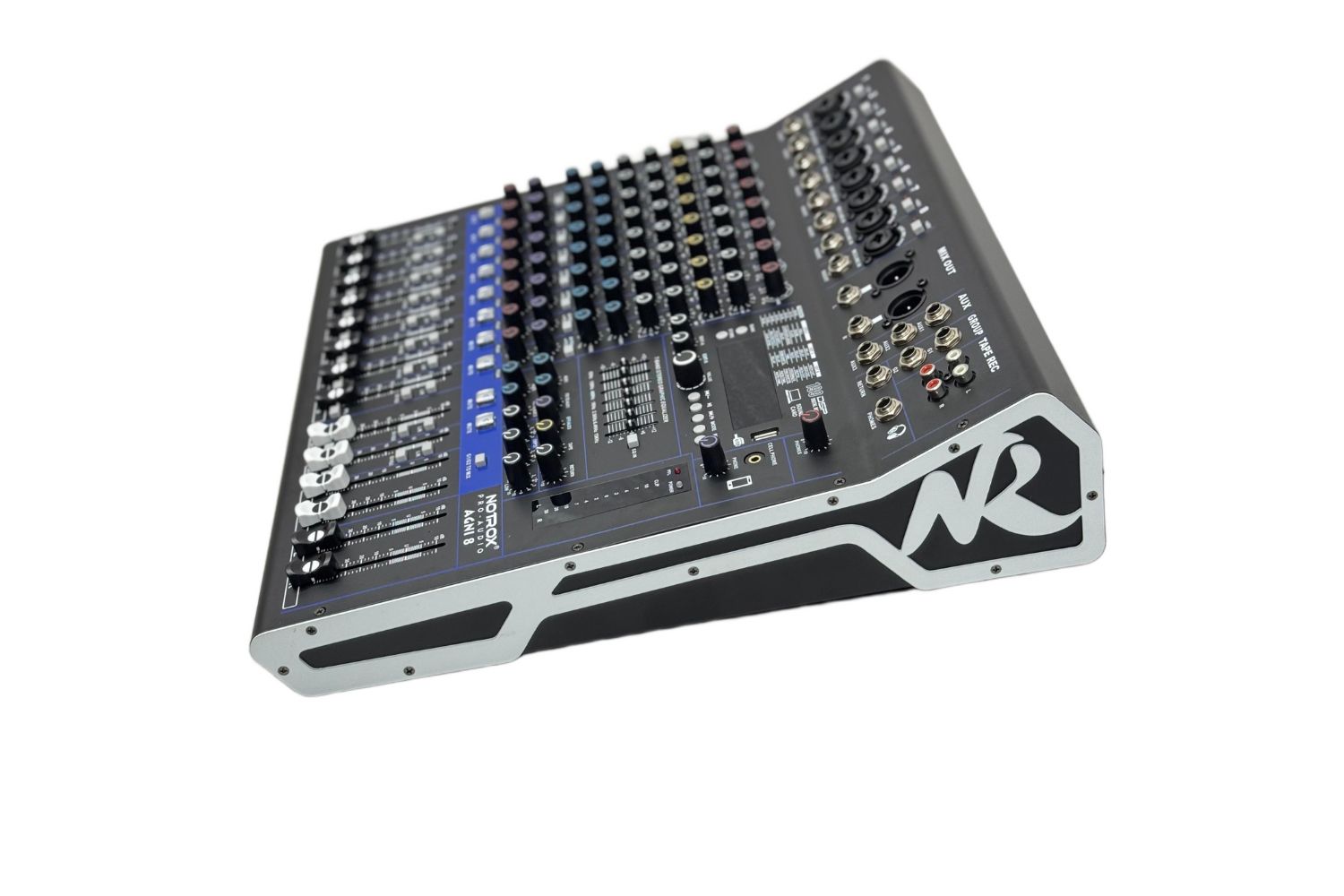

| AGNI 8 – Specifications |
|
| Feature |
Description |
| DSP Effects |
199 DSP effects |
| Media Support |
MP3 with LED display, USB jack, Bluetooth, USB recording, computer sound card recording |
| Included Cables |
1.5m connect cable for sound card recording; connect cable for phone recording & playback (Android only) |
| Phone Jack |
Phone jack for recording & playing with control knob |
| Mono Channels |
8 MONO channels with Combo Jack input & INSERT jack |
| Group Output |
2 GROUP output with 2 faders |
| Phantom Power |
+48V phantom power switch each channel |
| Aux Inputs |
3 AUX (2×AUX + 1×AUX/EFX) |
| Aux Send Control |
Effect send to AUX with individual volume knob |
| Main Output |
L/R main output with 2 faders |
| PFL Output |
PRE/POST switch for AUX-2 |
| Equalizer |
Built-in 7-band stereo equalizer with EQ IN switch |
| Per-Channel EQ |
HF, MF, MF sweep, LF, LF 40 on each channel |
| Media Controls |
HI, MID, LOW control for MP3/TAPE |
| Channel Monitoring |
MUTE with LED, PEAK LED |
| Switches |
PFL switch on each channel |
| Faders |
60mm fader |
| Power |
External adaptor |
