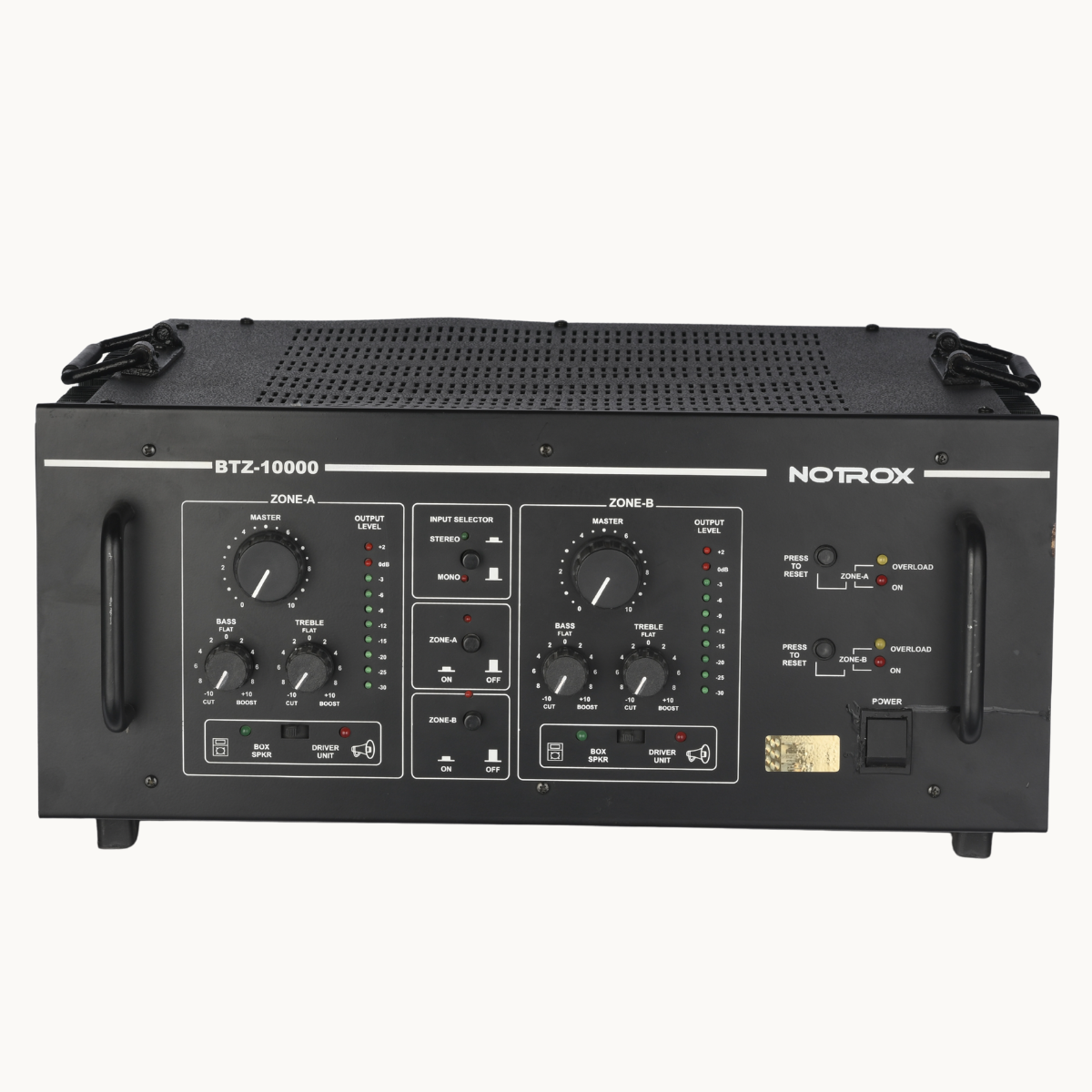

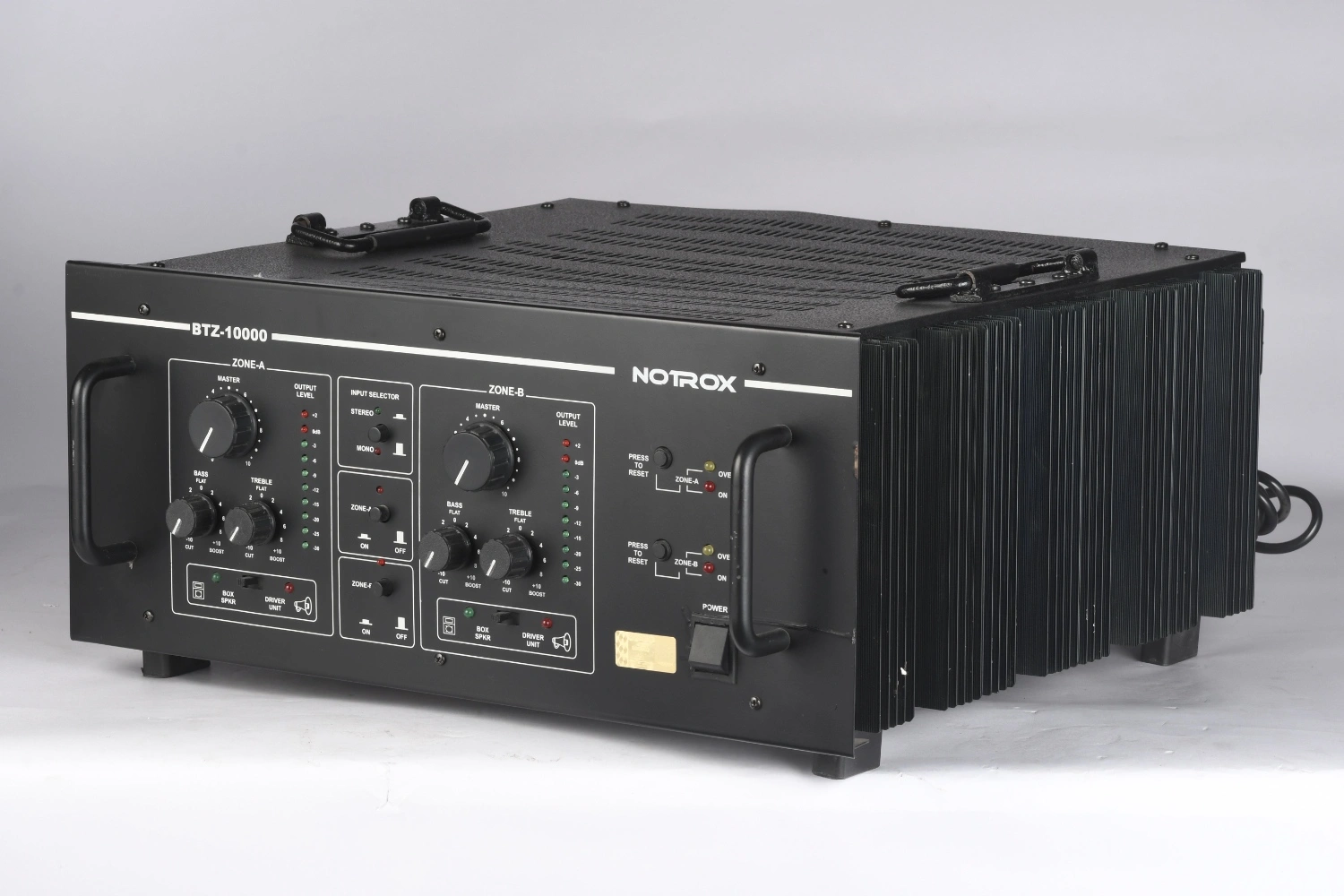

BTZ-10000
1000 WATTS, AC & 36V DC Operation
# stereo Music input for DJ programmes.
# facilitates connection and operation of two groups of speakers simultaneously on ‘Mono’ mode. ideal for Places of worship.
# line input & output on each zone for connecting to a Mixer and Booster Amplifier respectively.
# Box speaker/Driver unit selector switch for each zone. Bass boost defeated at Driver unit position for safer operation of driver units.
# Resettable circuit breaker for protection against overload and short circuit.
# Zone on/off facility. output levels of each Zone can be set independently to desired levels and the zones can be switched on/off without disturbing the volume settings.
- Need Help? Chat Now!
| SPECIFICATIONS | BTZ-10000 |
|---|---|
| POWER OUTPUT | 650W + 650W Max., 500W + 500W RMS at 10% THD 450W + 450W RMS at 2% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | Mono 2x 200mV / 100kΩ Stereo L/R 200mV/100kohm, Line L/R 1V/50kΩ |
| FREQUENCY RESPONSE | 50-15,000Hz +/-3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | BASS: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1KΩ |

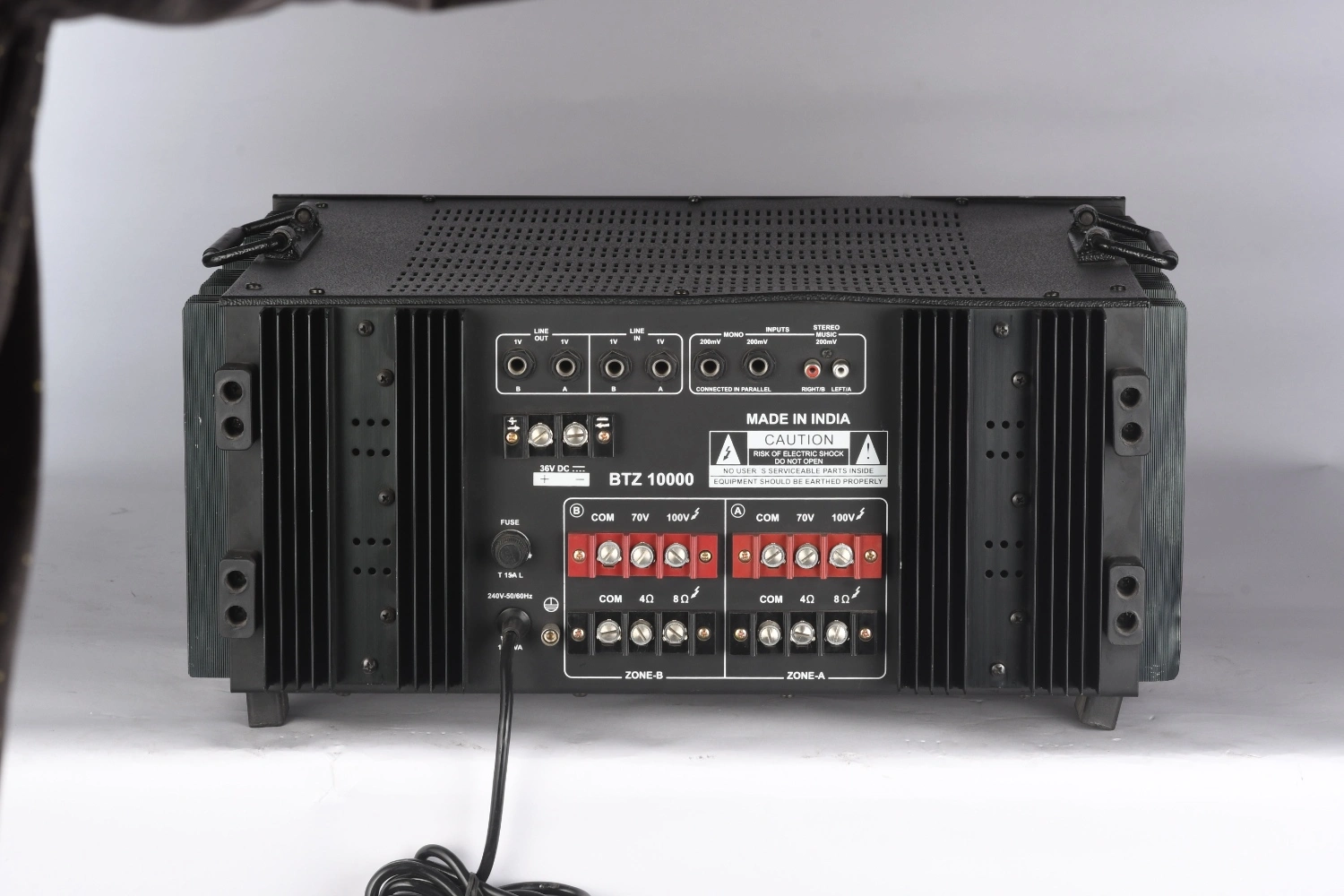

| SPEAKER OUTPUTS | 4Ω, 8Ω, 70V & 100V for each zone |
| POWER SUPPLY | AC:220-240 50/60Hz DC:24V (3X12V Car battery) |
| POWER CONSUMPTION | AC:1600VA DC:16A |
| DIMENSION | W510 X H220 X D440 mm |
| WEIGHT | 39kg |
