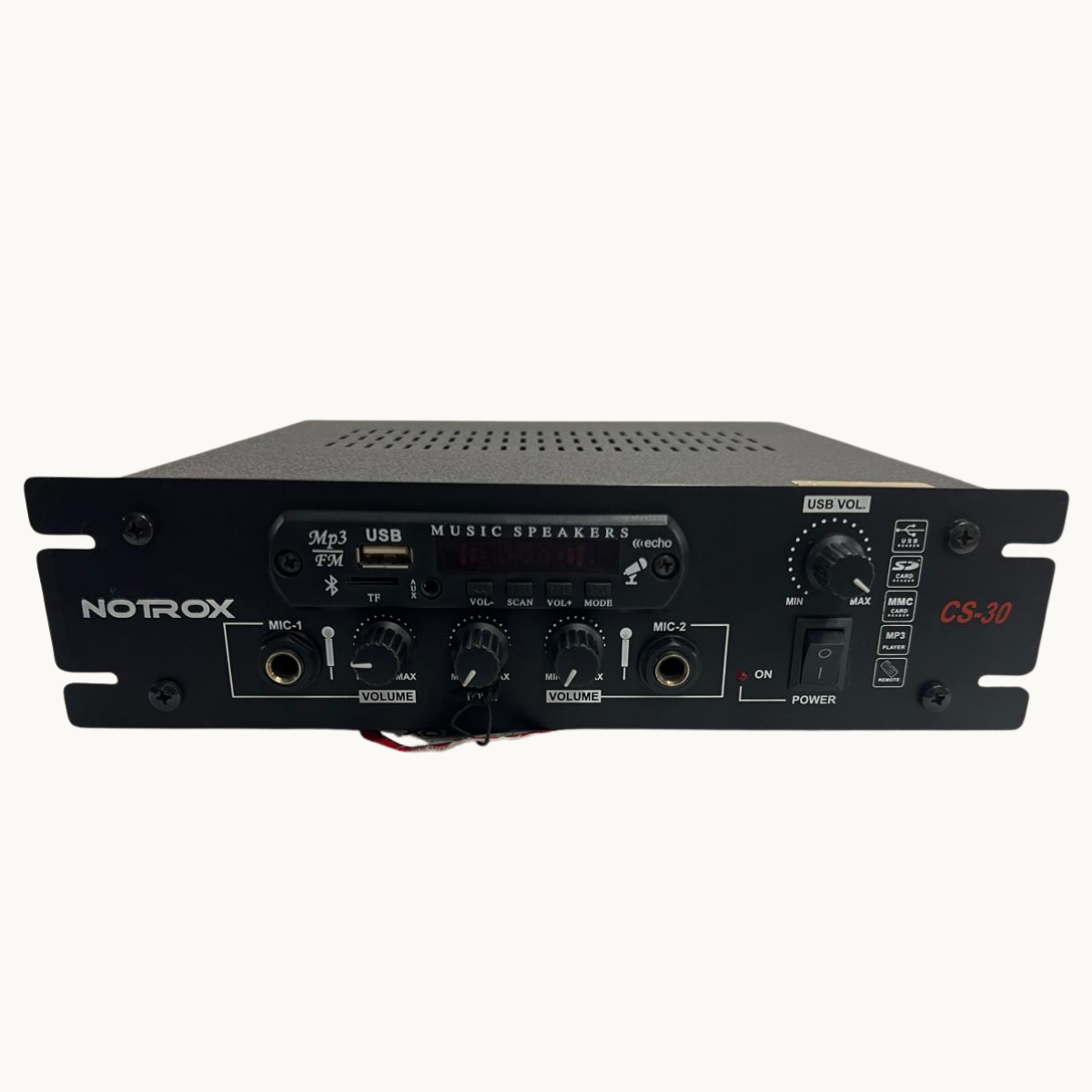

CS-30
30 WATTS, AC & 12V DC Operation
# 2 Mic
# Preamplifier and line output for connecting to a booster amplifier and recording the programme.
# Tone control cut type
# Instant transfer to DC power (Car Battery) if AC power fails.
- Need Help? Chat Now!
| SPECIFICATIONS | CS-30 |
|---|---|
| POWER OUTPUT | 40W Max., 30W RMS at 10% THD, 20W RMS at 5% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | 2 X Mic 0.6mV/4.7kΩ |
| FREQUENCY RESPONSE | 50-15,000Hz +/-3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | BASS: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1KΩ |
| SPEAKER OUTPUTS | 4Ω, 8Ω, 16Ω, 100V |
| POWER SUPPLY | AC:220-240 50/60Hz DC:12V (1X12V Car battery) |
| POWER CONSUMPTION | AC:80VA DC:1.2A |
| DIMENSION | W180 X H80 X D260 mm |
| WEIGHT | 3.5kg |
