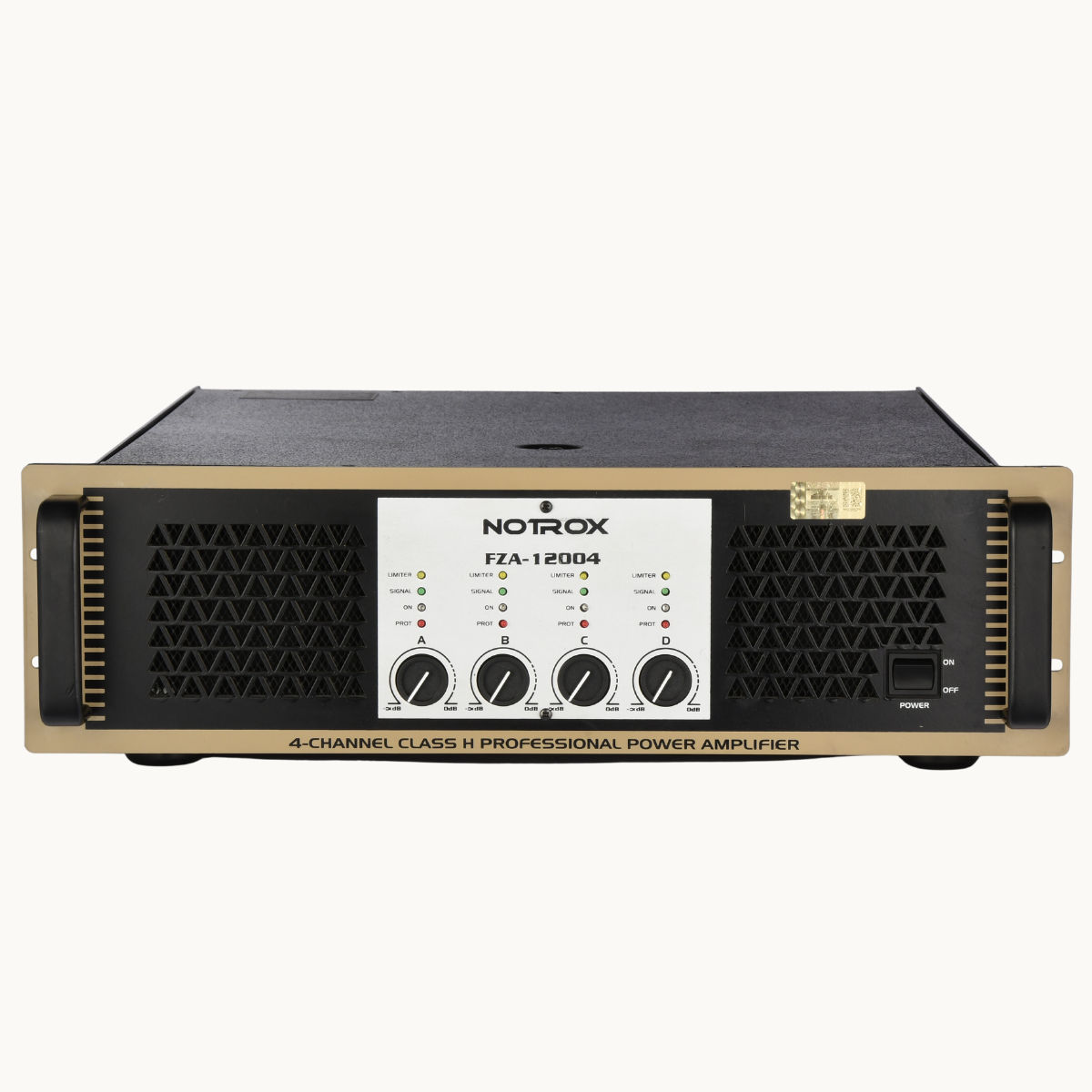

FZA-12004
# 4 channel direct coupled amplifier.
# Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
# Class H operation for superior sound quality.
- Need Help? Chat Now!
| SPECIFICATIONS | FZA - 12004 |
|---|---|
| Rated Power (1 KHz, THD+N=0.1%) | 8Ω stereo 4×700W 4Ω stereo 4×1500W |
| Frequency Response (1W 8Ω stereo) | 20Hz Ω 20KHz (±2dB) |
| Mode | Stereo/Bridge/Parallel |
| Input connectors | female XLR |
| Output connectors | Speakon |
| Input Impedance | Balanced 20K Unbalanced 10K |
| Input Sensitivity | 0.775V/1V/38dB |
| Slew Rate | 35V/μs |
| Filter Capability | 22000μf/63V × 8 |
| S/N ratio (8Ω, Rated Power 8Ω) | ≥100dB |
| Channel Separation (8Ω load, 1KHz and below) | ≥70dB |
| Damping Factor (1KHz, 8Ω) | ≥600 |
