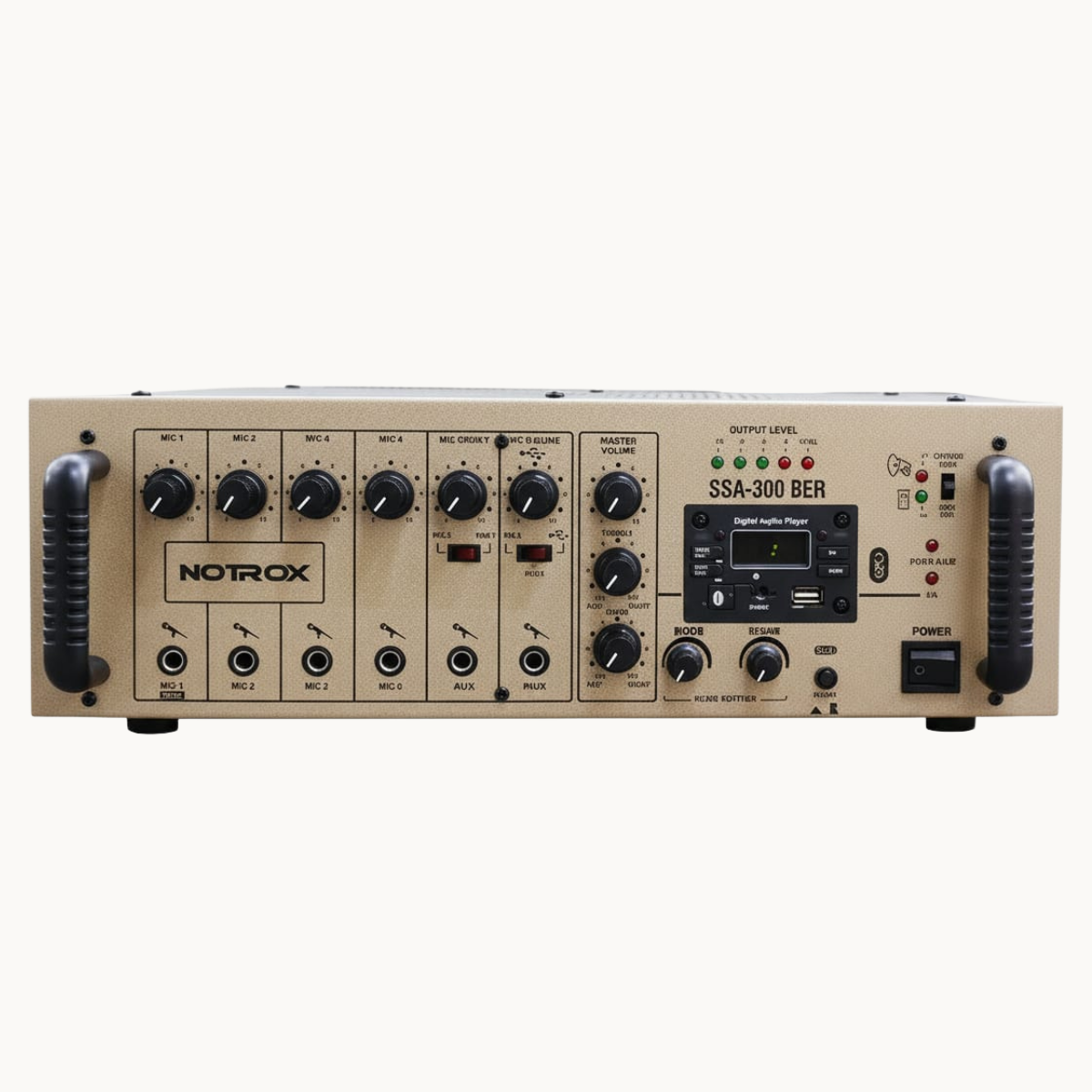

SSA-300 BER
300 WATTS, AC & 24V DC Operation
# 6 Mic & 2 Aux Inputs.
# Preamplifier and line output for connecting to a booster amplifier and recording the programme.
# Line input for connecting the output from any external mixer or permitting other to be used as a booster power amplifier.
# Resettable circuit breaker for protection against overload and short circuit.
# Instant transfer to DC power (Car Battery) if AC power fails.
- Need Help? Chat Now!
| SPECIFICATIONS | SSA-300 BER |
|---|---|
| POWER OUTPUT | 350W Max., 300W RMS at 10% THD / 250W RMS at 5% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | 6 × Mic 0.6mV/4.7kΩ, 1 × Aux 100mV/470kΩ 1 × Aux 250mV/50kΩ, 1 × Line 1Ω/50kΩ |
| FREQUENCY RESPONSE | 50–15,000Hz / -3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1KΩ |
| SPEAKER OUTPUTS | 4Ω, 8Ω, 70V & 100V |
| POWER SUPPLY | AC: 220–240V 50/60Hz DC: 24V (2×12V Car battery) |
| POWER CONSUMPTION | AC: 220VA DC: 6A |
| DIMENSION | W450 × H160 × D340 mm |
| WEIGHT | 16kg |
