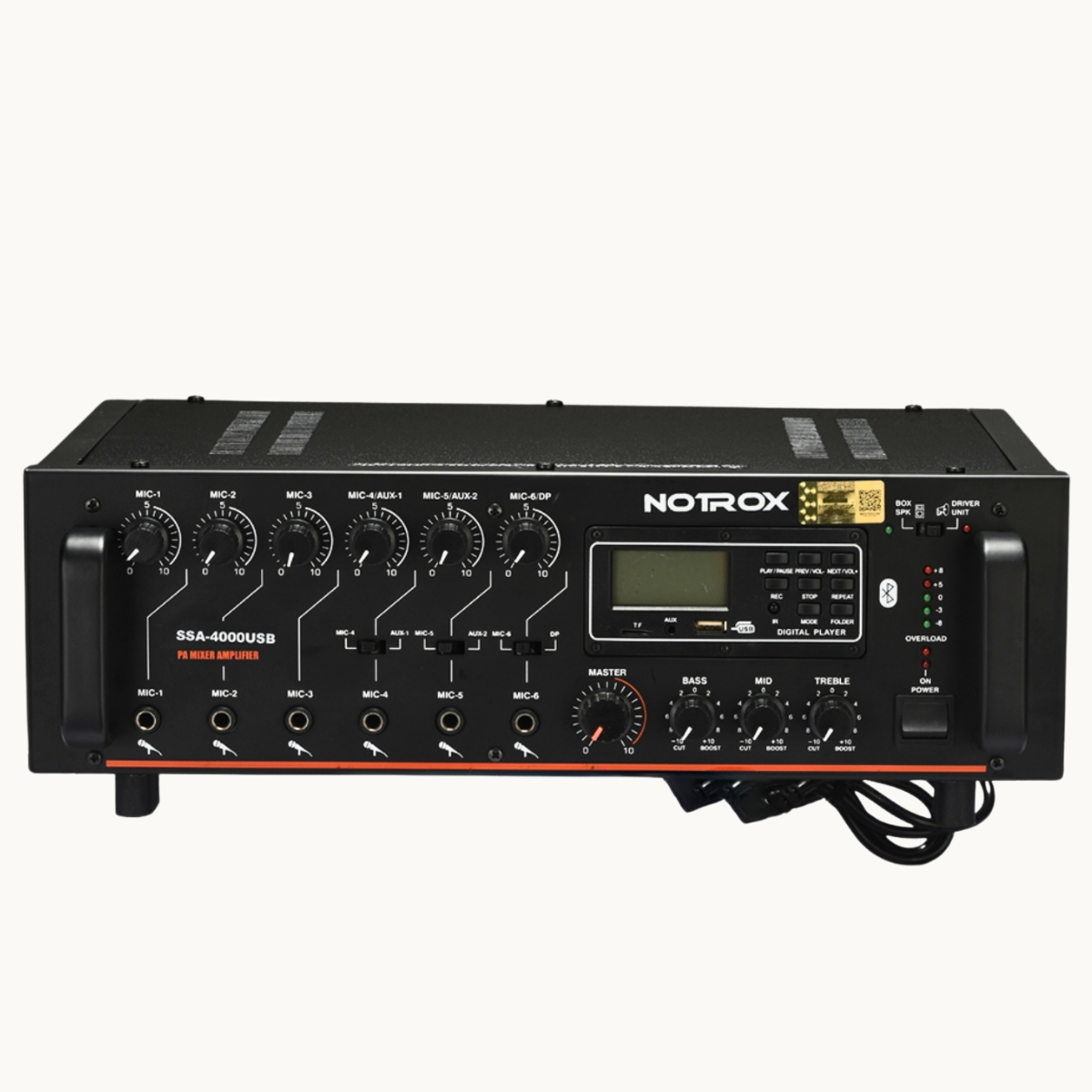

SSA-4000 USB
400 WATTS, AC & 24V DC Operation
# 6 Mic & 2 Aux Inputs.
# Preamplifier and line output for connecting to a booster amplifier and recording the programme.
# Line input for connecting the output from any external mixer or permitting other to be used as a booster power amplifier.
# Resettable circuit breaker for protection against overload and short circuit.
# Instant transfer to DC power (Car Battery) if AC power fails.
- Need Help? Chat Now!
| SPECIFICATIONS | SSA-4000 USB |
|---|---|
| POWER OUTPUT | 450W Max., 400W RMS at 10% THD, 300W RMS at 5% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | 6 X Mic 0.6mV/4.7kΩ, 1 X Aux 100mV/470kΩ 1 X Aux 250mV/50KΩ, 1 X Line 1Ω / 50KΩ |
| FREQUENCY RESPONSE | 50-15,000Hz +/-3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | BASS: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1KΩ |
| SPEAKER OUTPUTS | 4Ω, 8Ω, 70V & 100V |
| POWER SUPPLY | AC:220-240 50/60Hz DC:24V (2X12V Car battery) |
| POWER CONSUMPTION | AC:220VA DC:6A |
| DIMENSION | W450 X H160 X D340 mm |
| WEIGHT | 18kg |
