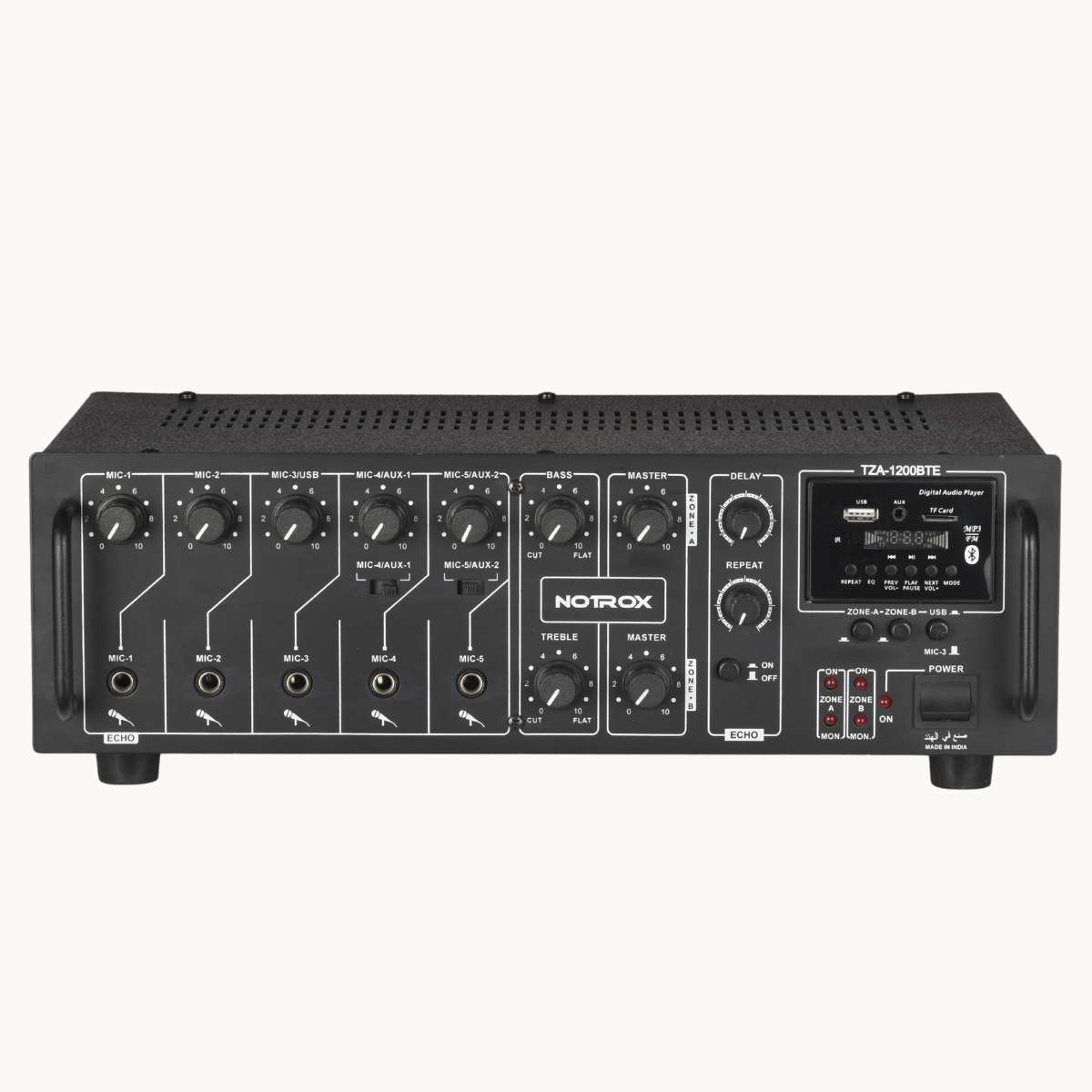

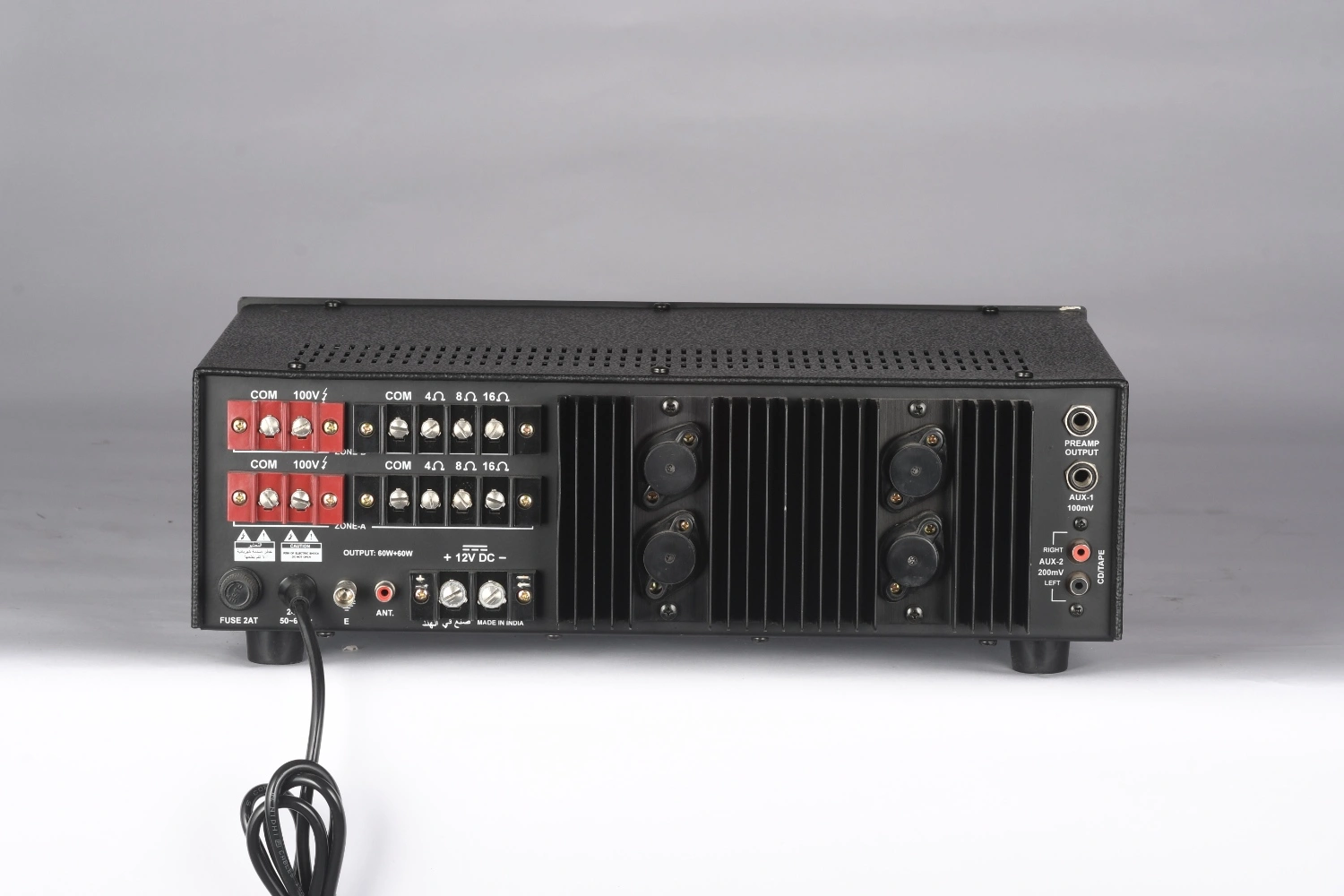

TZA-1200 BT
120 WATTS, AC & 12V DC Operation
# 5 Mic & 2 Aux Inputs.
# Stereo Music Operation for DJ programmes
# Preamplifier output for connecting to a booster amplifier and for recording the programme.
# Zone ON/OFF facility
# Instant transfer to DC power (Car Battery) if AC power fails.
- Need Help? Chat Now!
| SPECIFICATIONS | TZA-1200 BT |
|---|---|
| POWER OUTPUT | 60W + 60W Max., 50W + 50W RMS at 10% THD 40W + 40W RMS at 5% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | 5 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| FREQUENCY RESPONSE | 50–15,000Hz ±3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1kΩ |
| SPEAKER OUTPUTS | 4Ω, 8Ω, 70V & 100V for each zone |
| POWER SUPPLY | AC: 220–240V 50/60Hz, DC: 12V (1×12V Car battery) |
| POWER CONSUMPTION | AC: 300VA, DC: 6A |
| DIMENSION | W460 × H155 × D310 mm |
| WEIGHT | 13kg |
