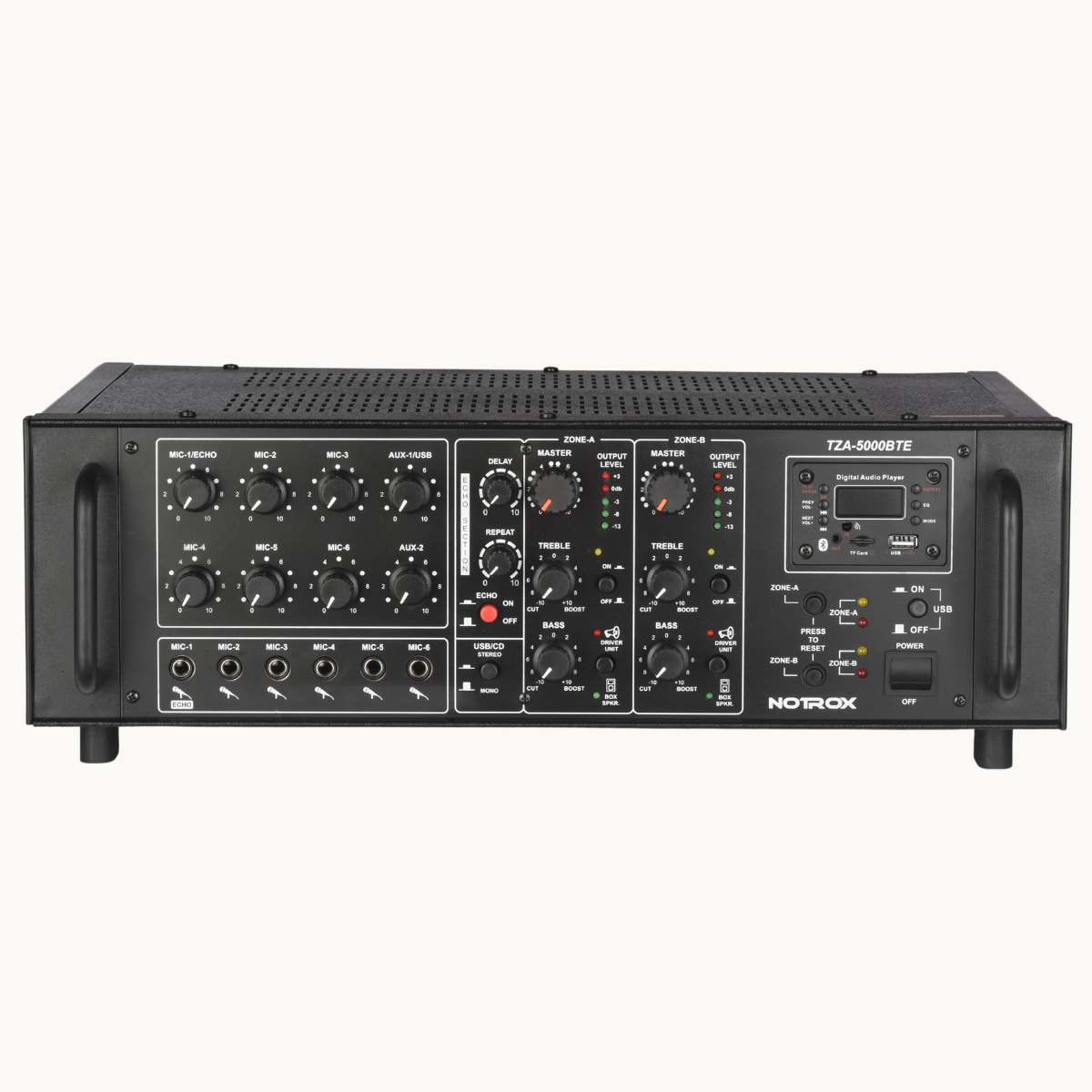

TZA-5000 BT
500 WATTS, AC & 24V DC Operation
# 6 Mic & 2 Aux Inputs.
# Stereo Music Operation for DJ programmes
# Facilitates connection and operation of two separates groups of speakers simultaneously on “Mono” mode Ideal for places of worship.
# Resettable circuit breaker for protection against overload and short circuit.
# Instant transfer to DC power (Car Battery) if AC power fails.
- Need Help? Chat Now!
| Specifications | TZA-5000 BT |
|---|---|
| POWER OUTPUT | 250W + 250W Max., 200W + 200W RMS at 10% THD 180W + 180W RMS at 5% THD |
| OUTPUT REGULATION | <2dB, no load to full load at 1kHz |
| INPUT CHANNELS | Mono 6 X Mic 0.6mV/4.7kΩ, 2 X Aux 100mV/470kΩ Stereo L/R 200mV/100kohm, Line L/R 1V/50kohm |
| FREQUENCY RESPONSE | 50-15,000Hz +/-3dB |
| SIGNAL TO NOISE RATIO | 60dB |
| TONE CONTROLS | BASS: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| OUTPUTS | LINE 1V/1kΩ |

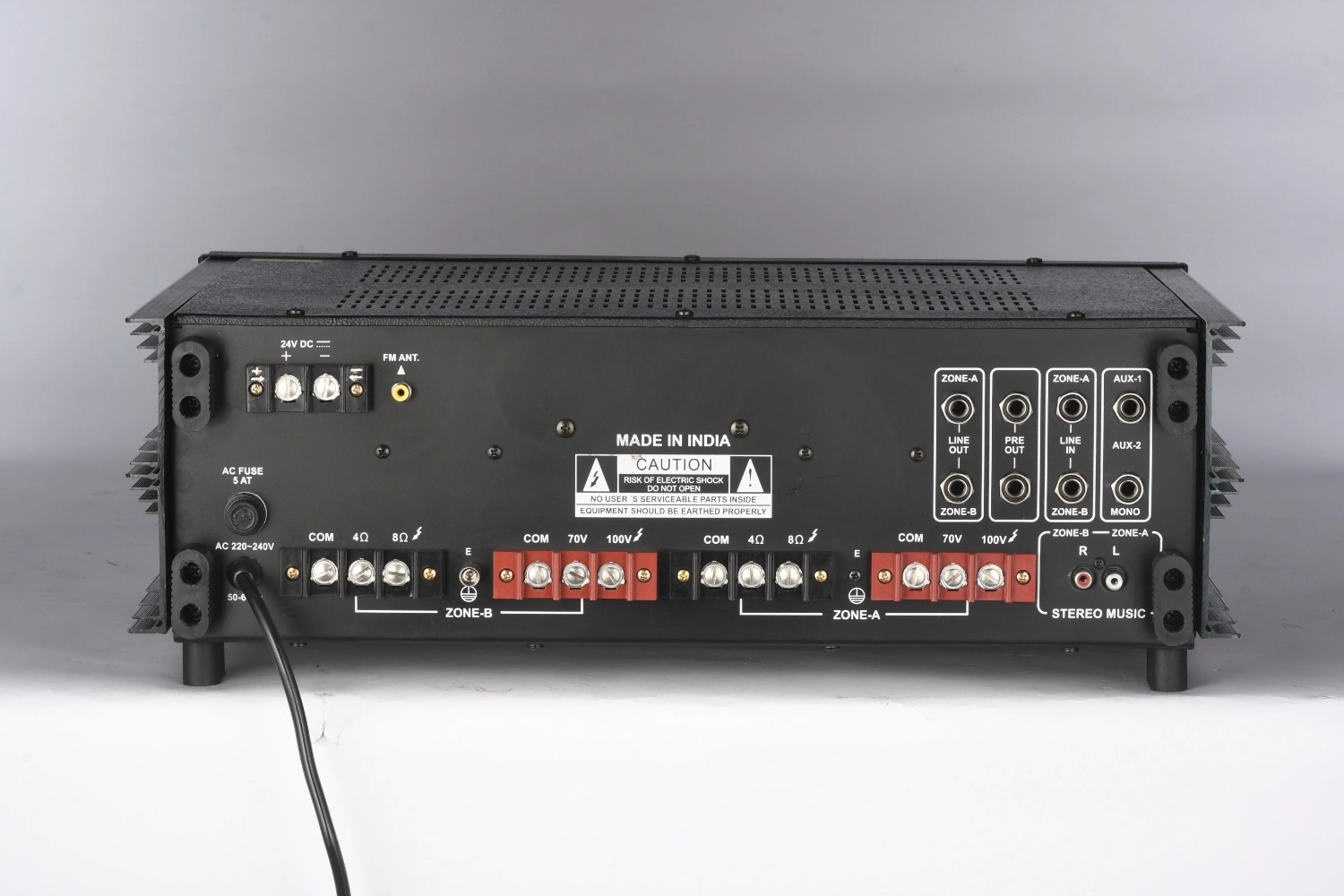

| SPEAKER OUTPUTS | 4Ω, 8Ω, 70V & 100V for each zone |
| POWER SUPPLY | AC: 220-240V 50/60Hz DC:24V (2X12V Car battery) |
| POWER CONSUMPTION | AC: 700VA DC: 9A |
| DIMENSION | W510 X H172 X D285 mm |
| WEIGHT | 24kg |
