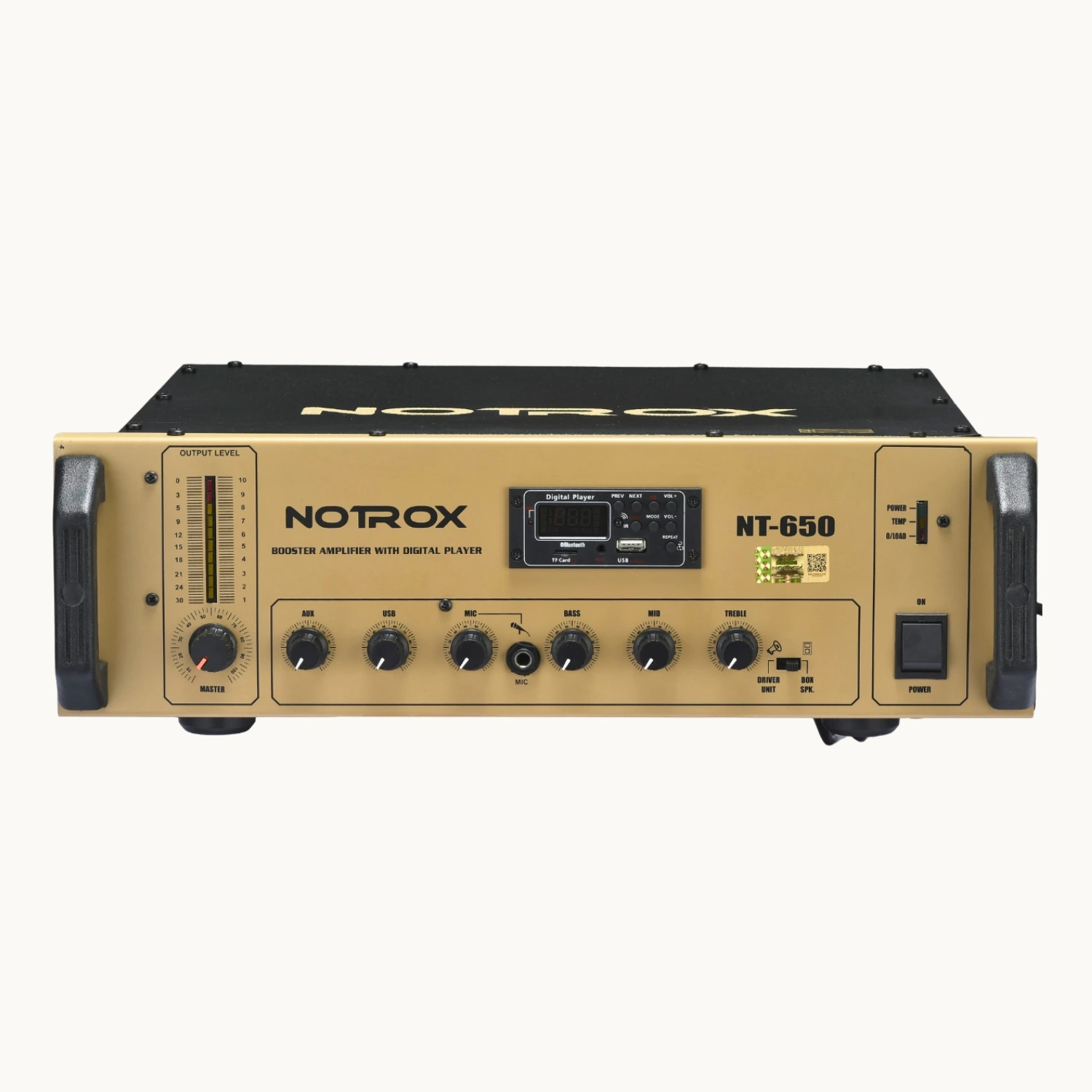

NT-650
650 WATTS, AC Operation
# Single channel LMT coupled amplifier.
# Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
# Especially designed for superior sound quality.
- Need Help? Chat Now!
| SPECIFICATIONS | XPA - 650U |
|---|---|
| CONTINUOUS RATED POWER | 2 OHM : 650W RMS |
| OUTPUT | 4 OHM : 550W RMS |
| LMT CONNECTIONS | 70/100V |
| CLASS | AB |
| POWER CONSUMPTION | 800VA @240V/50Hz |
| THD + N | 0.5% |
| FREQUENCY RESPONSE (-1dB) | 20-20,000Hz |
| POWER BANDWIDTH (0.5% THD) | 20-20,000Hz |
| INPUT SENSITIVITY | 0dB (200mV) & 4dBm (1V) |
| INPUT IMPEDANCE | 10k Unbalanced, 20k Balanced |
| MIC INPUT | 1 Mic |
| INPUT EQUALISER | BASS, MID, TREBLE CONTROL |
| PROTECTION | Temprature, Short Circuit, Overload etc |
| INPUT CONNECTORS | STEREO PHONE JACK 6.3 mm |
| OUTPUT CONNECTORS | Heavy Duty Binding Post |
| COOLING | 1 AC FAN |
| DIMENSIONS | 3U , 19” RACK MOUNTING |
| WEIGHT | 23Kg |
